B6505114

RAILTEC B, 9 modules, Vers. I

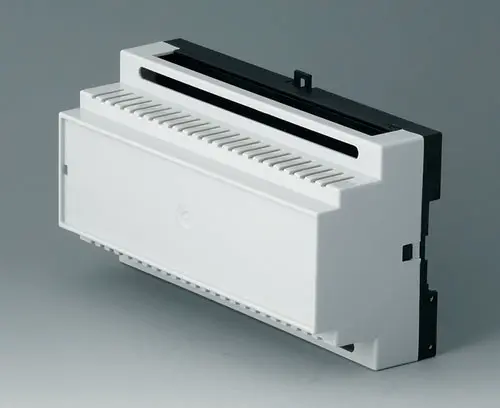

Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version

For terminal blocks 5.0 mm / 5.08 mm (52 terminals max.)

Supply

1 base part with locking clip, 1 top part

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for B6505114

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory "wall/holder"

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

B6600334

Wall suspension elements
product added to your basket

black

Accessory "terminals"

B6605111 Terminal block, block 5.0 mm

B6605111

Terminal block, block 5.0 mm PCB terminal block, 5.0 mm. 13-pin.

Supply 1 piece

B6605111

Terminal block, block 5.0 mm
product added to your basket

Accessory "screws"

A0305031 Self-tapping screws 0.098" x 0.236" (PZ1)

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1)
product added to your basket

Accessory

B6605100 Lid, 9 modules

B6605100

Lid, 9 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

B6605100

Lid, 9 modules
product added to your basket

transparent

Customizing options for B6505114

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Top part

Bottom part
Color
Top part light gray RAL 7035,
Bottom part black,
Locking clip black
Standards
RoHS compliant
DIN EN 60715 TH35
DIN VDE 0470-1
DIN 43880 unit 1
REACH compliant
VBG 4
IEC 529
Width
6.181″
157 mm
Height
3.386″
86 mm
Depth
2.323″
59 mm
PCB length, base
3.244″
82.4 mm
PCB width, base
5.953″
151.2 mm
Poles
≤ 52
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Miscellaneous information

Weight/1 part
99 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark

Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for B6505114 and don't forget to request a quotation!
