A9406334 SHELL-TYPE CASES V 110, Vers. II

A9406334

SHELL-TYPE CASES V 110, Vers. II

Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

With battery compartment

Supply

1 top and base part, battery compartment lid, assembly kit

  • Components/Accessories
  • View Customizing Options

Accessory to complete

A9106113 Front / rear panel V 110

A9106113

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940633.

Supply 1 front panel

Close

A9106113

Front / rear panel V 110
product added to your basket
Acrylic glass
red transparent
2.33″x0.98″x0.04″

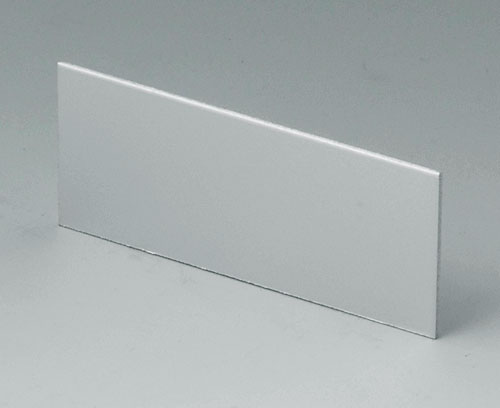

A9107111 Front / rear panel V 110

A9107111

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940633.

Supply 1 front panel

Close

A9107111

Front / rear panel V 110
product added to your basket
Aluminum
matt anodized
2.33″x0.98″x0.04″

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V

A9160003

Plug-in contact, 1 x 9 V Version: Lateral cable exit. Cable length approx. 3.937". Diameter of contacts = 0.224"/0.209".
Application: for a 9 V flat battery.

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V
product added to your basket

Accessory "protection"

A9106095 Contact-strips V, G 110

A9106095

Contact-strips V, G 110 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Close

A9106095

Contact-strips V, G 110
product added to your basket
Aluminum

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 0.098", max. wall thickness 0.157", location hole ø 0.197" required.

Supply 1 ring eyelet

Close

A9100002

Ring eyelet
product added to your basket
PA 6
volcano

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket

Accessory

A9207150 Anti-slide feet 0.256" x 0.079"

A9207150

Anti-slide feet 0.256" x 0.079" Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 0.256" x 0.079"
product added to your basket
transparent

Customizing options for A9406334

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
off-white RAL 9002
Width
2.835″
72 mm
Depth
4.488″
114 mm
Height
1.299″
33 mm
PCB length, base
2.717″
69 mm
PCB width, base
2.126″
54 mm
PCB length, top
3.858″
98 mm
PCB width, top
2.126″
54 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
85 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
