INTERFACE-TERMINAL COMPLETE SETS

Interface-Terminal Enclosures Sets

November 2014

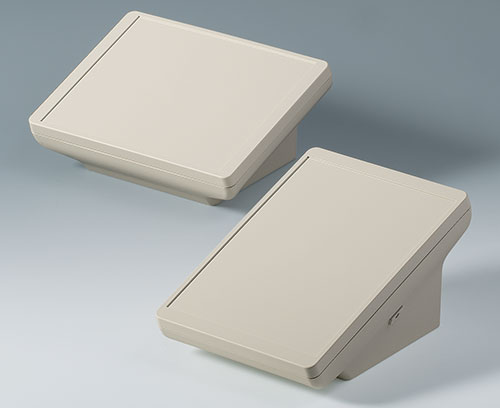

INTERFACE-TERMINAL - HANDHELD, DESKTOP OR WALL MOUNT CASES

OKW has made specifying its INTERFACE-TERMINAL multifunction electronic enclosures quicker and easier by making the most popular combinations available as complete sets.

INTERFACE-TERMINAL is one of OKW’s most innovative ranges. The modular design allows the enclosures to be used for handheld, desktop, wall or flush mounted applications using different combinations of the case components. The most popular combinations can now be ordered using just a single part number.

Applications include office electronics, controllers, communications, safety engineering, biometrics, medical and laboratory technology, healthcare, automation and measurement. These aesthetic and ergonomic enclosures are molded in ABS (UL 94 HB) and offer plenty of space for components, displays and touchscreens.

The modular construction allows five different case formats: mobile (with or without 5 x AA battery compartment); with base or flat wall suspension element; desktop; desktop/wall mounting with latch lock; flush mounted in walls or control panels. Options also include a choice of front panels in ABS, aluminum and glass (for touch screens).

Three plan sizes are available: 7.48” x 5.31” (S), 8.86" x 6.50" (M) and 10.83" x 7.68" (L). The standard color is Off White (RAL 9002). Custom colors are also available. Prices for the complete sets start at $40. OKW offers a wide range of accessories for these enclosures including contacts, IP54 sealing gaskets and two installation assembly kits.

Customizing services are also available including CNC milling and drilling, printing or engraving of legends and logos, special finishes, keypads and assembly.

View range here >>
