NEW NET-BOX IP 65 ENCLOSURES

Net-Box Wall Mount Enclosures

October 2016

PERFECT FOR MATCHING TO METAL OR METALLIC-LOOK FRONT PANELS

OKW has unveiled new IP 65 silicone sealing kits for its elegant NET-BOX wall mount enclosures. The optional new seals’ pre-molded contours make them easier to fit than traditional round cord versions – speeding up installation times.

NET-BOX is perfect for a wide range of applications: control units, building management, data acquisition, data systems engineering, measurement, supervision terminals with access control, medical and wellness technology.

Its curved top section adds a touch of style. Cables and connectors are concealed under the lid.

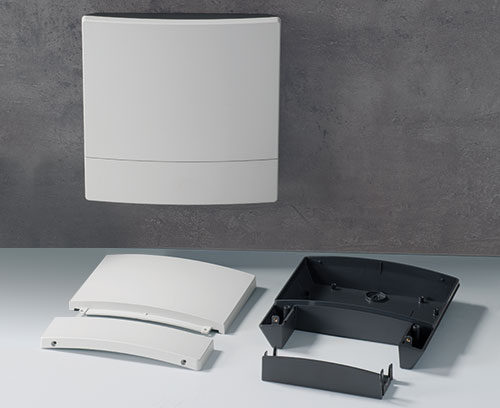

NET-BOX’s smart three-part construction means no screws are visible on the front. Anti-tamper Torx T10 screws are supplied as standard.

The three-point wall mounting system ensures there is no need to open the main electronics section. Only the front lid has to be refitted after installation. The bottom section features screw pillars for mounting PCBs.

NET-BOX is available in three sizes from 5.51” x 5.51” x 1.83” to 8.66” x 8.66” x 1.99”, offering plenty of space for PCBs and interfaces.

Cases are molded from high quality light gray (RAL 7035) ASA+PC-FR (UL 94 V-0) for enhanced UV stability. Prices start at $33.

Accessories include infill covers (lava gray), transparent rubber feet for desktop use and a Torx T10 screwdriver.

NET-BOX can be customized with bespoke colors, RFI/EMI shielding, CNC machining, lacquering, printing of logos and legends, adhesive foils, plastic and aluminum panels, installation and assembly.

View range here >>
