NEW FLAT/HIGH RAILTEC ENCLOSURES

AltText

May 2017

ACCOMMODATES CONNECTIONS AT DIFFERENT LEVELS AND ADDS EXTRA SPACE

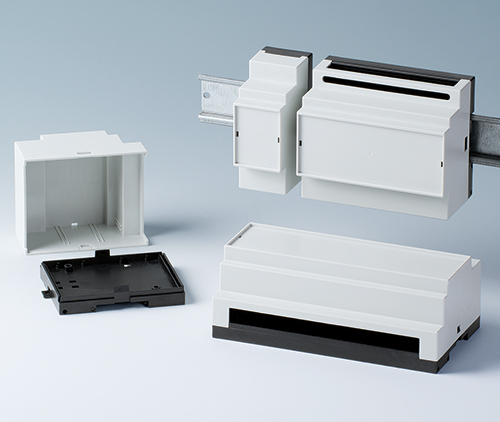

OKW has unveiled new flat/high RAILTEC B DIN rail enclosures that accommodate connections at different levels and offer extra space.

RAILTEC B is a universal DIN rail enclosure that meets machine-building and motor industry regulations. It can be mounted on TH35 DIN rails or directly on walls for applications including control equipment, notably lighting systems.

Various versions are available – with or without ventilation – for PCB terminal blocks; plug headers; front connectors (closed case) and D-SUB connectors. Open case enclosures enable the fitting of different combinations of terminal guards.

The new flat/high variant is available in two, four, six and nine modules (pitches 5.0/5.08 mm) – offering sizes from 1.38” x 3.39” x 2.28” to 6.18” x 3.39” x 2.32”.

RAILTEC B is fully insulated and protected to VBG 4. It is molded from light gray (RAL 7035) polycarbonate (PC, UL 94 V-0) as standard. Prices start at $7.

Accessories include a bus system for enclosures that share common power and data connections; wall suspension elements; terminal blocks; plug headers; self tapping screws (0.098” x 0.236” PZ1) and transparent lids.

OKW can supply RAILTEC B fully customized ready for PCBs. Services include EMI/RFI shielding; CNC machining; lacquering; screen, tampo and digital printing of parts and labels; membrane keypads; display windows; plastic and aluminum panels; installation and assembly of accessories.

View range here >>
