OKW’s NEW STYLE-CASE For Wire Connected Electronics

AltText

February 2020

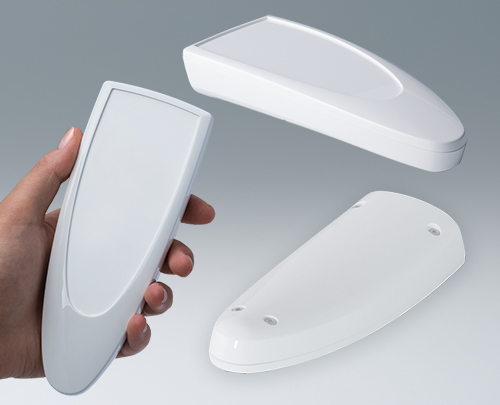

OKW has extended its range of STYLE-CASE handheld enclosures with a new version L without a battery compartment – providing even more space inside for the electronics. The new version is ideal for wired connected electronics.

Ergonomic STYLE-CASE is perfect for remote controls, notably in medical and social care electronics but also in a wide range of office, industrial and household controller applications.

STYLE-CASE has a modern high-gloss finish which is pleasant to touch, imparts a high-quality user experience and is also easy to keep clean. The operating area in the top is recessed to accommodate a membrane keypad or product label.

Robust STYLE-CASE offers ingress protection up to IP 65. It is assembled using tamperproof Torx stainless steel screws – an important feature for medical and wellness applications. Inside there are screw pillars for mounting PCBs and components.

STYLE-CASE is available as standard in three sizes – S (4.84” x 1.89” x 0.94”), M (5.79” x 2.20” x 1.06”) and L (6.54” x 2.52” x 1.22”) – and two plastics: high gloss traffic white (RAL 9016) ASA or black (RAL 9005) PMMA for infrared applications. Both plastics are rated UL 94 HB for flammability. The new version of size L is available only in traffic white ASA.

Accessories include wall holders, IP 65 sealing kits, a strain relief clamp and a flexible cable grommet (Ø 5.3 mm).

OKW offers customized versions of STYLE-CASE. Services include CNC machining, custom colors, lacquering, decor foils, special materials such as flame retardant (V-0) plastic, RFI/EMI shielding, printing/laser marking, installation and assembly.

STYLE-CASE Technical Video

View STYLE-CASE range >>
