MOTEC Compact Desktop/Portable Instrument Enclosures Now With Sloping Front

MOTEC Portable Instrument Enclosures

February 2024

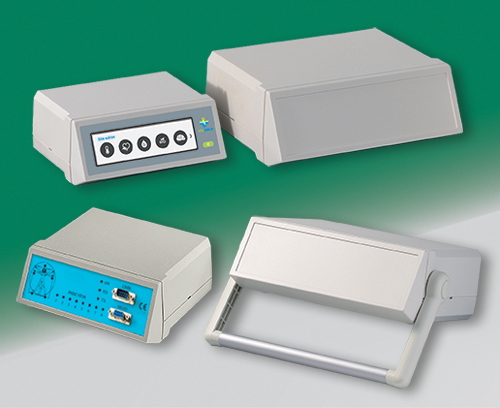

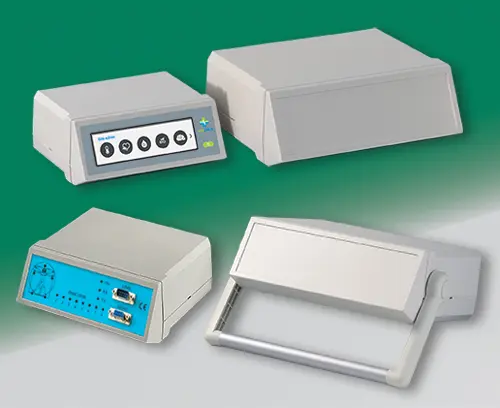

OKW’s MOTEC desktop/portable electronic instrument enclosures are now available with a sloping front for more ergonomic viewing and operation.

MOTEC is ideal for measurement and control, feedback control, peripheral devices and interfaces, switchboxes, modems, laboratory equipment, medical and wellness electronics.

These stylish compact enclosures are now available with a sloping plastic control panel (accessory) that is recessed to accommodate a membrane keypad. The alternative is a flat aluminum front/rear panel (accessory).

Robust clip-together assembly saves time when fitting the electronics. For security, a screwdriver is required to open the housings. Inside, there are screw pillars for PCBs, and also guide grooves for PCBs or vertical partitions. The enclosures are supplied with four self-adhesive non-slip feet.

These off-white (RAL 9002) ABS (UL 94 HB) housings are available in three plan sizes (S, M, L) and a choice of height configurations. This creates a range of nine sizes from 6.10″ x 4.13″ x 1.57″ to 9.25″ x 6.50″ x 4.33″. Two sizes (M 8.07″ x 5.51″ x 2.95″ and L 9.25″ x 6.50″ x 3.35″) are available with or without an adjustable bail arm that doubles as a desk stand.

Accessories include sloping plastic control panels, matt anodized flat aluminum front/rear panels, and self-tapping screws for mounting PCBs.

OKW can supply MOTEC fully customized. Services include CNC machining, lacquering, printing, laser marking, decor foils, special materials, RFI/EM shielding and installation/assembly of accessories.

View MOTEC range >>
