More front panel options for DATEC-TERMINAL enclosures

Press Release - September 2015

View DATEC-TERMINAL range...

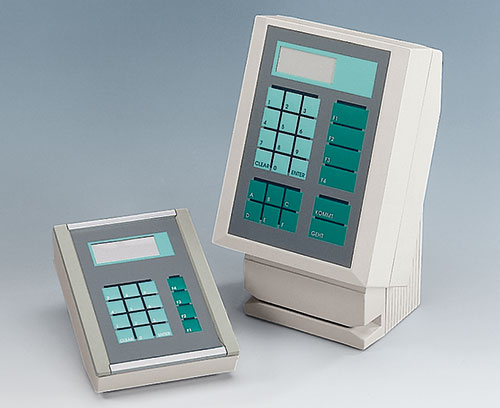

Ergonomic sloping front enclosures for desktop or wall mounting.

OKW has extended its DATEC-TERMINAL range of multi-format sloping front enclosures by offering a choice of front panels and covers which can be milled and drilled to mount keypads, displays, membrane keypads etc.

DATEC-TERMINAL is designed for data collection, measuring and control, access control and security, HVAC, medical equipment and point of sale applications.

This smart ergonomic range of desktop and wall mounted terminal enclosures features a large operating area inclined by 20º for ease of operation. The rear lid has been designed specifically for mounting standard pocket-size scanners.

DATEC-TERMINAL is quick to assemble and offers easy access to the components – speeding up installation times. All the fixings are hidden, enhancing the aesthetics. The enclosures offer a protection rating of IP 54 when configured with a cover and closed lid.

They are available in four sizes: S (5.12” x 7.09”); SL (10.39” x 7.09”); M (6.61” x 10.71”) and L (11.89” x 10.71”). The M and L models feature a separate terminal section and are offered in three versions - with or without recesses for fitting fixed or hinged lids and locks. The housings are molded from Off White ABS (UL 94 HB). They can be configured with recessed flat or convex covers in ABS (UL 94 HB) or transparent polycarbonate (UL 94 V-0). The convex covers are finished with a pair of cover strips.

Optional accessories include aluminum front panels or profile plates, and wall suspension elements. M and L models can be fitted with a closed lid for the separate terminal section or a credit card slot lid.

Prices for DATEC-TERMINAL start at $33. Customizing options include CNC milling and drilling; custom colors; special finishes (such as lacquering and water transfer printing); special materials (such as carbon neutral bioplastic); digital, silk-screen and tampo printing of legends and logos; RFI/EMI shielding and assembly of components.
